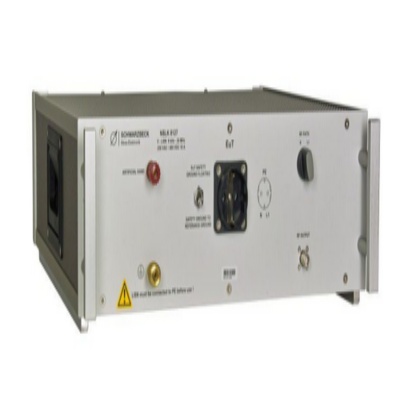

schwarzbeck施瓦茨貝克NSLK8127單相人工電源網絡

V型線性阻抗穩定網絡-AMN?

主要參數：

頻率范圍:DC-30 MHz

相數:三相（帶單相）

額定電流:2*16A（50）

特征阻抗:(50μH+5Ω )//50Ω

模擬人工手:有

RF連接器:N型

Topology: V-LISN

Frequency Range: 9 kHz - 30 MHz

Pre-filter choke: 250 μH

Impedance simulation: 50 Ω || (50 μH + 5 Ω)

Max. Current:

2 x 16 A

Max. Voltage: 250 VAC 50/60 Hz

400 VDC

Supply cable: hard-wired three-wire connection cable with CEE 7/4 Type F (Schuko) plug

Connector for EuT:

CEE 7/4 Type F (Schuko) socket

Connector for ?artificial hand“: 4 mm laboratory socket with screw terminal 6 mm, not removable

Connector to EMI receiver: BNC socket 50 Ω

Lenght: 470 mm

Width: 445 mm

Height: 145 mm

Weight: 9.5 kg

Standard: CISPR 16-1-2
